Schneider Electric
RM6
RM6
Couldn't load pickup availability
Description
Description

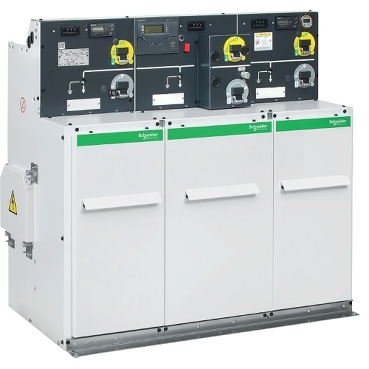

RM6
Gas Insulated ring main unit (RMU) for underground secondary distribution applications, up to 24 kV
Part of SeT Series
Ring main units.
READY FOR A MORE SUSTAINABLE OPTION? Go for SF6-free RM AirSeT with all functions and capabilities.
Switch to SF6-free RM AirSeT, powered by air and digital
Innovative RMU to reduce the carbon footprint of electrical distribution with unmatched flexibility and powerful digital capabilities.
Discover RM6
Gas Insulated Ring Main Unit
RM6 is a gas-insulated switchboard (RMU) designed under IEC 62271-1 standard, combining all medium voltage functions to enable the connection, supply, and protection of transformers for an open ring or radial network. RM6 can also meet medium voltage secondary distribution needs in more complex network configurations where renewable energy supply sources are involved.
Facts about RM6
• Standard: IEC 62271-200
• Rated voltage: Up to 24 kV
• Frequency: 50 or 60 Hz
• Rated current busbar: 630 A
• Rated current for load break switch: 630 A
• Rated current for circuit breaker 200 A (for transformer protection), 630 A (for feeder protection)
• Busbar system: Single
• Short circuit rated current: Up to 21 kA / 1 s
• Internal arc classification: Up to 20 kA AFLR with options
• Loss of service continuity: LSC 2 A
• Partition class: PM
