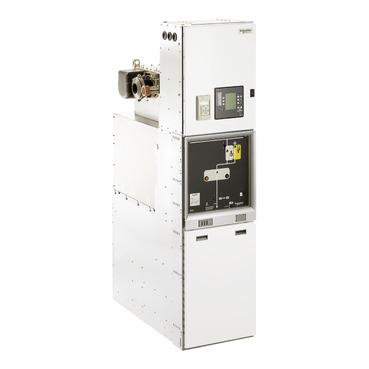

Primary Gas Insulated Switchgear, GHA, bus tie, double busbar, up to 40.5kV, up to 2500A, 40kA

Environmental Data
Use Better
Packaging made with recycled cardboard
No
Use Longer
Repair
No
Use Again
Take-back
Yes

Documents

Product Datasheet

Environmental Disclosure

See all documents
+ Lifecycle Services
Sort by:
SelectService Plans
Service plan, EcoCare, GHA, advanced offer, 1 year duration, medium voltage high performance, connected services
ECRADVMVHIGH1Y

Service plan, EcoCare, GHA, advanced offer, 2 years duration, medium voltage high performance, connected services
ECRADVMVHIGH2Y

Specifications
Main
Master range    SeT Series
Range of product    GHA
Functional unit    BS bus sectionalizer cubicle
Insulation technology    Gas insulated switchgear
Type of Insulating gas    SF6
Number of phases    3
Network type    AC
Type of installation    Indoor installation
Busbar system    Double busbar
Busbar description    Solid insulated busbar
Switching device    Circuit breaker
Standards    IEC 62271-200
Rated voltage (Ur)    40.5 kV
Rated short-duration power frequency withstand voltage (Ud) / Common value    80 kV
Rated lightning impulse withstand voltage (Up) / Common value    185 kV
Rated frequency (fr)    50/60 Hz
Rated continuous current of busbars (Ir)    2500 A
Rated continuous current (Ir)    800 A
1250 A
1600 A
2000 A
2500 A
Rated short-circuit breaking current (Isc)    40 kA
Rated short-circuit making current    100 kA 50 Hz
Rated short-time withstand current (Ik)    40 kA
Rated duration of short-circuit (tk)    3 s
Rated peak withstand current (Ip)    100 kA 50 Hz
Filling level for insulation and/or switching (Pre rel.)    0.05 MPa
Loss of service continuity category    LSC2
Internal arc classification    AFL
AFLR
Rated arc fault current (IA)    40 kA
Rated arc fault duration (tA)    1 s
Partition class    PM
Complementary
Degrees of protection provided by enclosures (IP code)    IP65 (functional unit)
IP4X (LV control compartment)
IP3X (cable compartment)
IP2X (front of the mechanical operating panel)
Instrument transformer    Current transformer
Voltage transformer
Sensor type    TH110 thermal sensor
CL110 environmental sensor
Protection relay    Easergy P3
Easergy Micom series 20
Easergy Sepam series 60
Cable connection system    Inner cone
Outer cone
Cable type    Single core
Mass    1560 kg
Height    2400 mm
Width    900 mm
Depth    1400 mm
Environment
Ambient air temperature for operation    -5…40 °C
Ambient air temperature for storage    -25…70 °C
Humidity conditions    Average relative humidity over 24 h <= 95 %
Average relative humidity over 1 month <= 90 %
Operating altitude    <= 1000 m
Contractual warranty
Warranty (in months)    18

Environmental Data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data explained

How we assess product sustainability

Environmental footprint
Environmental Disclosure
Product Environmental Profile
Use Better

Materials and Substances
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)
SCIP Number
3c9a0db3-b9f0-4ecf-b953-4875be63a2cf
REACh Regulation
REACh Declaration

Use Longer
Lifetime extension
Repair
No
Use Again

Repack and remanufacture
End of life manual availability
End of Life Information

Take-back
Yes
