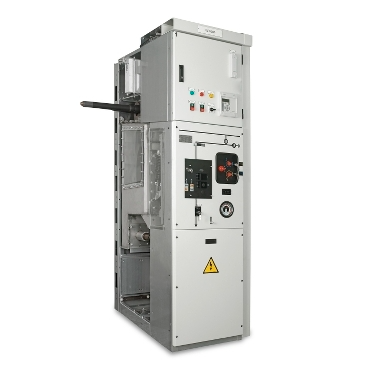

Primary Gas Insulated Switchgear, CBGS-0, cable riser, 36kV, up to 2000A, 31.5kA

Specifications
Main
Master range    SeT Series
Range of product    CBGS-0
Product name    CBGS-0
Functional unit    CR coupler riser
Insulation technology    Gas insulated switchgear
Type of Insulating gas    SF6
Number of phases    3
Network type    AC
Type of installation
Indoor installation
Busbar system    Single busbar
Busbar description    Sleeved busbar
Switching device    SF6 circuit breaker
Vacuum circuit breaker
Standards    IEC 62271-200
Rated voltage (Ur)    36 kV
Rated short-duration power frequency withstand voltage (Ud) / Common value    70 kV
Rated lightning impulse withstand voltage (Up) / Common value    170 kV
Rated frequency (fr)    50/60 Hz
Rated continuous current of busbars (Ir)    2000 A
Rated continuous current (Ir)    1250 A
1600 A
2000 A
Rated short-circuit breaking current (Isc)    25 kA
31.5 kA
Rated short-circuit making current    65 kA 50 Hz
82 kA 60 Hz
Rated short-time withstand current (Ik)    25 kA
31.5 kA
Rated duration of short-circuit (tk)    3 s
Rated peak withstand current (Ip)    65 kA 50 Hz
82 kA 60 Hz
Filling level for insulation and/or switching (Pre rel.)    0.03 MPa
Loss of service continuity category    LSC2
Internal arc classification    AFL
AFLR
Rated arc fault current (IA)    31.5 kA
Rated arc fault duration (tA)    1 s
Rated supply voltage of auxiliary and control circuits (Ua)    24/48/60/110/125/220 V DC
48 V AC 50 Hz
110 V AC 50 Hz
125 V AC 50 Hz
220 V AC 50 Hz
120 V AC 60 Hz
Complementary
Degrees of protection provided by enclosures (IP code)    IP65 (functional unit)
IP3X (LV control compartment)
IP41 (LV control compartment)
Instrument transformer    Current transformer
Voltage transformer
Voltage presence type    VPIS voltage presence indicating system
VDS voltage detecting system
Sensor type    CL110 environmental sensor
TH110 thermal sensor
Protection relay
Easergy P3
Easergy P5
Easergy Sepam series 60
Easergy Sepam series 80
Easergy MiCOM P30 series
Easergy MiCOM P40 series
Arc fault detector    Easergy Vamp 121
Easergy Vamp 125
Easergy Vamp 321
Cable type    Single core
Cable cross-section    0 to 1200 mm²
Number of cables per phase    Up to 3
Mass    930 kg
Height    2350 mm
Width    600 mm
Depth    1400 mm
Environment
Ambient air temperature for operation    -5…40 °C
Ambient air temperature for storage    -25…55 °C
Humidity conditions    Average relative humidity over 24 h <= 95 %
Average relative humidity over 1 month <= 90 %
Operating altitude    <= 2000 m
Contractual warranty
Warranty (in months)    18
