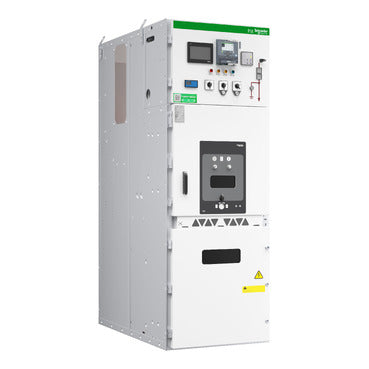

Primary Air Insulated Switchgear, PIX, incomer & feeder functional unit, 12kV, upto 1250A, upto 40kA 3s, width 650mm
Primary Air Insulated Switchgear, PIX, incomer & feeder functional unit, 12kV, upto 1250A, upto 40kA 3s, width 650mm
Couldn't load pickup availability
Description
Description
Specifications
Main
Master range SeT Series
Range of product PIX
Product name PIX 12
Functional unit Incomer
Feeder
Insulation technology Air insulated switchgear
Number of phases 3
Network type AC
Type of installation Indoor
Busbar system Single busbar
Switching device Vacuum circuit breaker
Product compatibility EvoPact HVX
Standards IEC 62271-200
Rated voltage (Ur) 12 kV
Rated short-duration power frequency withstand voltage (Ud) / Common value 28 kV
Rated lightning impulse withstand voltage (Up) / Common value 75 kV
Rated frequency (fr) 50/60 Hz
Rated continuous current of busbars (Ir) 4000 A
Rated continuous current (Ir) 800 A
1250 A
