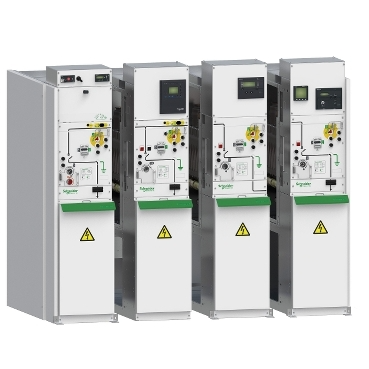

PremSet

PremSet
Premset offers multiple easy to select configurations and meets all MV applications in secondary distribution networks
Part of SeT Series
The next generation of compact modular switchgear

We have neatly integrated the latest technology in our Medium Voltage (MV) switchgear design, shielded solid insulation. In this technology, all live parts of the switchgear are carefully shielded to minimize risks when the equipment is under maintenance. With the combination of solid encapsulation and vacuum, this technology can be found in secondary or primary distribution applications of up to 17.5 kV. Explore our exclusive PremSet range of MV switchgear smartly combined with Shielded Solid Insulation System.

Facts about PremSet
Range composed of compact, smart, and modular units with a voltage rating of up to 17.5 kV, earth-shielded solid, and easily adaptable to specific requirements:
• Circuit breaker and switch-disconnector using vacuum technology
• Rated PF withstands voltage: 42/48 kV 1mn
• Rated BIL withstands voltage: 95/110 kV
• Rated busbar current: 630A and 1250A
• Rated max short-time withstand current: 25 kA x 3s
• Cable earthing switch: 25 kA, M0, E2
• Degree of protection: IP3X
• Dimensions W x H x D (mm): 375 x 1550 x 910

Functional units:
• 3 switches
• I06T and I06H, I12H
• 5 circuit-breakers: D01N, D02N, D06N, D06H, D12H
• 4 metering units: M06S, M06A, M12S, M12A
• Technology: Shielded Solid Insulation
• Standard: IEC

PremSet is an essential part of the EcoStruxure Power architecture, it combines with the latest communication and automation devices to act as an IoT-connected MV panel. It integrates seamlessly with other innovative, interoperable products, unlocking new opportunities in power distribution.
