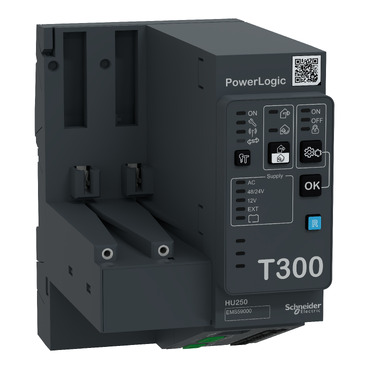

PowerLogic HU250: head unit communication gateway with cyber security management

Description

Head unit communication gateway with cyber security management. It include for communication port: 5 RJ45 for Ethernet, 1 RJ45 for modbus, 1 RJ45 for USB, 1 RJ45 for RS and RS232, and 1 SMA for 3G and 4G. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificat. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.

Specifications

Main
Range of product    PowerLogic T300
Range    PowerLogic
Product name    PowerLogic T300
Device short name    HU250
Complementary
Product or component type    Communication gateway
Communication port protocol    DNP3 serial and TCP master station/outstation
Modbus serial and TCP client/server
Modbus RTU client/server
IEC 61850-8-1 controlling/controlled station
IEC 60870-5-104 controlling/controlled station
IEC 60870-5-101 controlled station
Communication port support    ETHERNET 4 RJ45
RS485/RS232 1 RJ45
3G/4G 1 SMA
Data recording    Event logs
4 data logs
1 ms time stamps
500000 events
Sequence of event recording
Memory capacity    16 MB
Time synchronisation protocol    NTP
SNTP
GPS
Synchronisation time between inputs    1 ms
Control type    Illuminated push-button status:
IK degree of protection    IK07 conforming to IEC 62262
Relative humidity    5…95 % conforming to IEC 60068-2-30
Mechanical robustness    Vibrations 10…2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
Bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29
Shocks 11 ms 3 pulses in operation conforming to IEC 60068-2-27
Ambient air temperature for storage    -40…85 °C
Ambient air temperature for operation    -40…70 °C
Operating altitude    2000 m
Product certifications    CE
Standards    IEC 60255-27
Height    140 mm
Width    90 mm
Depth    140 mm
Net weight    0.55 kg
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    11.900 cm
Package 1 Width    19.100 cm
Package 1 Length    19.800 cm
Package 1 Weight    765.000 g
Unit Type of Package 2    S04
Number of Units in Package 2    9
Package 2 Height    30.000 cm
Package 2 Width    40.000 cm
Package 2 Length    60.000 cm
Package 2 Weight    7.277 kg
Contractual warranty
Warranty (in months)    18
