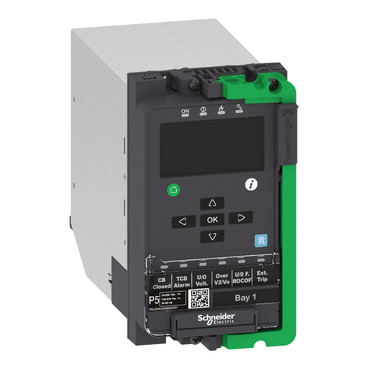

PowerLogic™ P5V20 24-250V 4VT 4DI-4DO

Description
The PowerLogic P5 is Schneider Electric's withdrawable protection and control relay for demanding medium voltage distribution applications. This voltage relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. The product embeds latest cybersecurity functionality to help prevent intentional mis-use and cyber-threats. PowerLogic P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The PowerLogic P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 24 to 250 VDC and 100 to 230 VAC. It works with conventional VTs. 3 phase voltage inputs, 1 neutral voltage input. It offers 4 digital inputs and 4 digital outputs and no communications. Communication modules can be added any time. The product dimensions are 180 mm in height (7.09 in), 102 mm in width (4.01 in) and 224 mm in depth 8.82 in) for a net weight of 2.5 kg (5.5 lbs). PowerLogic P5 is compliant with EN 60255-26, EN 60255-27 standard and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug and play communication modules:Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51032), IRIG-B module (REL51045). connection cords (59660, 59661, 59662). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance. Included with functions as per the datasheet below. For other configurations with additional functions and options, Please select via Product Selector.

Specifications
Main
Range of product    PowerLogic P5
Product or component type    Protection and control relay
Relay application    Voltage
product reference    P5V20-AABA-DAAAA-BAEA
Mounting case size    20TE
Device mounting    Flush
Mounting mode    Withdrawable
power supply    24...240 V DC
100...230 V AC
measuring inputs    : VT voltage 4
Number of sensors    0 temperature sensor(s)
0 arc sensor(s)
number of Digital Inputs (DI)    4
number of analogue inputs    0
number of Digital Outputs (DO)    3 DO
1 watchdog
number of analogue outputs    0
communication ports    USB port 2 front
communication protocols    -
Cybersecurity    Port hardening
Firmware signature
Client IP address filter
Secured communication with assciated tools
Security policy management
Role-based access control
Security log
LDAP
RADIUS based user authentication
IEC 62443-4-2 SL1
protection functions    Overvoltage
Undervoltage
Positive sequence undervoltage 27P
Earth fault overvoltage 59N
Underfrequency 81/81N
Rate of change of frequency 81R
Synchro-check
Breaker failure 50BF
Lockout relay
VT supervision
Programmable stages
Programmable curve
measurement functions    Voltage 3-phase
Voltage residual
Voltage zero sequence
Voltage positive sequence
Voltage negative sequence
Frequency
Phasor diagram of currents or voltages
control functions    Switchgear control and monitoring
Programmable switchgear interlocking
Local/remote control
controllable switchgear devices    6 controlled + 2 monitored objects
number of setting groups    4
monitoring functions    Trip circuit supervision 74
Circuit breaker monitoring
Relay self-monitoring
logs and records    Event recording
Disturbance recording
Tripping context
Relay maintenance

Switchgear diagnosis
type    VT supervision ANSI code: 60
Trip circuit supervision ANSI code: 74
Connections - terminals    Screw (digital input/output)
Ring lugs (analog inputs and outputs)
Complementary
Software name    ESetup Easergy Pro: virtual simulation test
Display type    LCD 192 x 96 pixels
Number of key    1 customizable
Local signalling    4 x LED
6 x LED tri-colour programmable
Height    176 mm
Width    102 mm
Depth    219 mm
Net weight    2.5 kg
Environment
climatic withstand    Exposure to cold conforming to IEC 60068-2-1
Exposure to dry heat conforming to IEC 60068-2-2
Exposure to damp heat in service conforming to IEC 60068-2-78
Exposure to damp heat in service conforming to IEC 60068-2-30
Temperature variation conforming to IEC 60068-2-14
Salt mist conforming to IEC 60068-2-52
Influence of corrosion/gas test 2 conforming to IEC 60068-2-60
Influence of corrosion/gas test 4 conforming to IEC 60068-2-60
Influence of corrosion/gas test 2 conforming to IEC 60721-3-3
Influence of corrosion/gas test 4 conforming to IEC 60721-3-3
Mechanical robustness    Vibrations (level: class 2) conforming to IEC 60255-21-1
Vibrations conforming to GOST 17516.1
Vibrations conforming to IACS E10
Shocks (level: class 2) conforming to IEC 60255-21-2
Earthquakes (level: class 2) conforming to IEC 60255-21-3
Electromagnetic compatibility    Emission tests class A conforming to CISPR 11
Emission tests class A conforming to CISPR 32
Emission tests conforming to IACS E10
EMC immunity class 4 conforming to IEC 61000-4-2
EMC immunity class 4 conforming to ANSI C37.90.3
EMC immunity level 3 conforming to IEC 61000-4-3
EMC immunity conforming to ANSI C37.90.2
EMC immunity conforming to GOST 32137
EMC immunity conforming to GOST 30804.4.3
EMC immunity conforming to IACS E10
EMC immunity level 5 conforming to IEC 61000-4-8
EMC immunity level 5 conforming to IEC 61000-4-9
EMC immunity level 5 conforming to IEC 61000-4-10
EMC immunity level 3 conforming to IEC 61000-4-6
EMC immunity level 3 conforming to IEC 61000-4-18
EMC immunity conforming to ANSI C37.90.1
EMC immunity conforming to IEC 61000-4-12
EMC immunity conforming to GOST 30804.4.12
EMC immunity level 4 conforming to IEC 61000-4-16
EMC immunity level 4 conforming to IEC 61000-4-4
EMC immunity level 4 conforming to IEC 61000-4-5

Ambient air temperature for operation    -40…85 °C ( 16 h )
-40…70 °C ( 96 h )
Ambient air temperature for storage    -40…85 °C
IP degree of protection    IP54 conforming to IEC 60529
maximum operating altitude    2000 m
Protective treatment    Conformal coating conforming to IEC 60068-2-52:Kb/1
Conformal coating conforming to IEC 60068-2-60:Ke
Conformal coating conforming to IEC 60721-3-3:3C2
Relative humidity    0…93 % at 40 °C, without condensation, 56 days
93…95 % at 25…55 °C, 6 cycles, 12 + 12 hours
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    30.0 cm
Package 1 Width    30.0 cm
Package 1 Length    40.0 cm
Package 1 Weight    3.0 kg
Contractual warranty
Warranty (in months)    24
