PowerLogic™ P5F30 48-250V 3LPCT 1CSH 4LPVT 16DI-12DO

Description

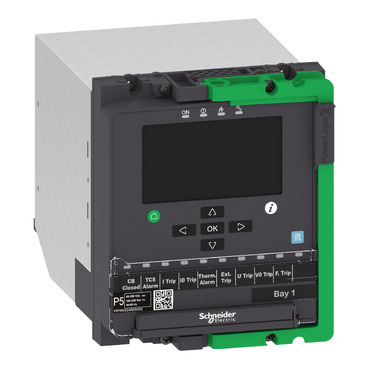

The PowerLogic P5 is Schneider Electric's withdrawable protection and control relay for demanding medium voltage distribution applications. This feeder relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. The product embeds latest cybersecurity functionality to help prevent intentional mis-use and cyber-threats. PowerLogic P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The PowerLogic P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 48 to 250 VDC and 100 to 230 VAC. It works with low power instrument transformers. 3 LPCT inputs, 1 Schneider Electric specific CSH neutral current input and 4 LPVT inputs. It offers 16 digital inputs and 12 digital outputs and no communications. Communication modules can be added any time. The product dimensions are 180 mm in height (7.09 in), 152,4 mm in width (6.00 in) and 224 mm in depth 8.82 in) for a net weight of 3.5 kg (7.7 lbs). PowerLogic P5 is compliant with EN 60255-26, EN 60255-27 standard and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug and play communication modules: Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also 2nd Ethernet RSTP RJ45 (REL51042), RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51052), CSH core-balance CTs (59635, 59636, 59637), 8 temperature sensor module (59641), IRIG-B module (REL51045). connection cords (59660, 59661, 59662), LPVT hub (EMS59573), VT adapter (EMS59572). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance. Included with functions as per the datasheet below. For other configurations with additional functions and options, Please select via Product Selector.
Specifications
Main
Range of product    PowerLogic P5
Product or component type    Protection and control relay
Relay application    Feeder - directional over current
product reference    P5F30-BACB-IAAAA-BAEA
Mounting case size    30TE
Device mounting    Flush
Mounting mode    Withdrawable
power supply    48...250 V DC
100...230 V AC
measuring inputs    : LPCT phase current 3
: CSH residual current 1
: LPVT voltage 4
Number of sensors    0 temperature sensor(s)
0 arc sensor(s)
number of Digital Inputs (DI)    16
number of analogue inputs    0
number of Digital Outputs (DO)    11 DO
1 watchdog
number of analogue outputs    0
communication ports    USB port 2 front
