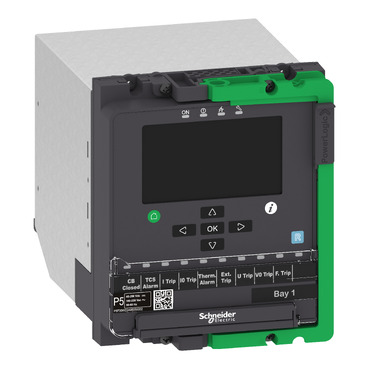

PowerLogic™ P5M30 48-250V 3CT 2Io 4VT 16DI-12DO

Description
The PowerLogic P5 is Schneider Electric's withdrawable protection and control relay for demanding medium voltage distribution applications. This motor relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. The product embeds latest cybersecurity functionality to help prevent intentional mis-use and cyber-threats. PowerLogic P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The PowerLogic P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 48 to 250 VDC and 100 to 230 VAC. It works with conventional CTs/VTs. 3 phase current inputs, 1 standard neutral current input, 1 sensitive neutral current input and 4 voltage inputs. It offers 16 digital inputs and 12 digital outputs and no communications. Communication modules can be added any time. The product dimensions are 180 mm in height (7.09 in), 152,4 mm in width (6.00 in) and 224 mm in depth 8.82 in) for a net weight of 3.5 kg (7.7 lbs). PowerLogic P5 is compliant with EN 60255-26, EN 60255-27 standard and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug and play communication modules: Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also 2nd Ethernet RSTP RJ45 (REL51042), RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51052), 8 temperature sensor module (59641), IRIG-B module (REL51045). connection cords (59660, 59661, 59662). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance. Included with functions as per the datasheet below. For other configurations with additional functions and options, Please select via Product Selector.
Specifications
Main
Range of product    PowerLogic P5
Product or component type    Protection and control relay
Relay application    Motor
product reference    P5M30-BACB-GAAAA-BAEA
Mounting case size    30TE
Device mounting    Flush
Mounting mode    Withdrawable
power supply    48...250 V DC
100...230 V AC
measuring inputs    : 1/5 A CT phase current 3
: 1/5 A CT residual current 1
: 1 A CT residual current 1
: VT voltage 4
Number of sensors    0 temperature sensor(s)
0 arc sensor(s)
number of Digital Inputs (DI)    16
number of analogue inputs    0
number of Digital Outputs (DO)    11 DO
1 watchdog
number of analogue outputs    0
communication ports    USB port 2 front
communication protocols    -
Cybersecurity    Port hardening
Firmware signature
Client IP address filter
Secured communication with assciated tools
Security policy management
Role-based access control
Security log
LDAP
RADIUS based user authentication
IEC 62443-4-2 SL1
protection functions
Phase overcurrent 50/51
Directional phase overcurrent 67
Earth fault overcurrent 50N/51N
Restricted earth fault 64REF
Directional earth fault 67N
Transient earth fault 67NI
Neutral admittance 21YN
Earth fault wattmetric 32N
Broken conductor 46 I2/I1
Current unbalance 46 I2/I1
Cold load pick-up
Switch ON to fault (SOTF)
H2 detection
H5 detection
Breaker failure 50BF
Directional active underpower 37P
Phase undercurrent 37
Excessive starting time, locked rotor 48/51LR
Motor restart inhibition 66
Negative sequence overcurrent 46
Overvoltage 59
Undervoltage 27
Positive sequence undervoltage 27P
Earth fault overvoltage 59N
Underfrequency 81/81N
Lockout relay 86
CT supervision 60
VT supervision 60
Programmable stages 99
Programmable logic
Programmable curve
measurement functions    Current 3-phase
Current zero sequence
Current positive sequence
Current negative sequence
Current ratio of negative and positive
Phasor diagram of currents or voltages
Current 2nd, 15th harmonics with THD
Voltage 3-phase
Voltage residual
Voltage zero sequence
Voltage positive sequence
Voltage negative sequence
Frequency
control functions
Switchgear control and monitoring
Programmable switchgear interlocking
Local/remote control
controllable switchgear devices    6 controlled + 2 monitored objects
number of setting groups    4
monitoring functions    Trip circuit supervision 74
Circuit breaker monitoring
Relay self-monitoring
logs and records    Event recording
Disturbance recording
Tripping context
Relay maintenance
Switchgear diagnosis type    CT/VT supervision ANSI code: 60
Trip circuit supervision ANSI code: 74
Connections - terminals    Screw (digital input/output)
Ring lugs (analog inputs and outputs)
Complementary
Software name    ESetup Easergy Pro: virtual simulation test
Display type    Colour LCD 480 x 272 pixels
Number of key    7 customizable
Local signalling    4 x LED
10 x LED tri-colour programmable
Height    176 mm
Width    152 mm
Depth    219 mm
Net weight    3.5 kg
Environment
climatic withstand
Exposure to cold conforming to IEC 60068-2-1
Exposure to dry heat conforming to IEC 60068-2-2
Exposure to damp heat in service conforming to IEC 60068-2-78
Exposure to damp heat in service conforming to IEC 60068-2-30
Temperature variation conforming to IEC 60068-2-14
Salt mist conforming to IEC 60068-2-52
Influence of corrosion/gas test 2 conforming to IEC 60068-2-60
Influence of corrosion/gas test 4 conforming to IEC 60068-2-60
Influence of corrosion/gas test 2 conforming to IEC 60721-3-3
Influence of corrosion/gas test 4 conforming to IEC 60721-3-3
Mechanical robustness    Vibrations (level: class 2) conforming to IEC 60255-21-1
Vibrations conforming to GOST 17516.1
Vibrations conforming to IACS E10
Shocks (level: class 2) conforming to IEC 60255-21-2
Earthquakes (level: class 2) conforming to IEC 60255-21-3
Electromagnetic compatibility
Emission tests class A conforming to CISPR 11
Emission tests class A conforming to CISPR 32
Emission tests conforming to IACS E10
EMC immunity class 4 conforming to IEC 61000-4-2
EMC immunity class 4 conforming to ANSI C37.90.3
EMC immunity level 3 conforming to IEC 61000-4-3
EMC immunity conforming to ANSI C37.90.2
EMC immunity conforming to GOST 32137
EMC immunity conforming to GOST 30804.4.3
EMC immunity conforming to IACS E10
EMC immunity level 5 conforming to IEC 61000-4-8
EMC immunity level 5 conforming to IEC 61000-4-9
EMC immunity level 5 conforming to IEC 61000-4-10
EMC immunity level 3 conforming to IEC 61000-4-6
EMC immunity level 3 conforming to IEC 61000-4-18
EMC immunity conforming to ANSI C37.90.1
EMC immunity conforming to IEC 61000-4-12
EMC immunity conforming to GOST 30804.4.12
EMC immunity level 4 conforming to IEC 61000-4-16
EMC immunity level 4 conforming to IEC 61000-4-4
EMC immunity level 4 conforming to IEC 61000-4-5
Ambient air temperature for operation    -40…85 °C ( 16 h )
-40…70 °C ( 96 h )
Ambient air temperature for storage    -40…85 °C
IP degree of protection    IP54 conforming to IEC 60529
maximum operating altitude    2000 m
Protective treatment    Conformal coating conforming to IEC 60068-2-52:Kb/1
Conformal coating conforming to IEC 60068-2-60:Ke
Conformal coating conforming to IEC 60721-3-3:3C2
Relative humidity    0…93 % at 40 °C, without condensation, 56 days
93…95 % at 25…55 °C, 6 cycles, 12 + 12 hours
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    30.0 cm
Package 1 Width    30.0 cm
Package 1 Length    35.0 cm
Package 1 Weight    4.5 kg
Contractual warranty
Warranty (in months)    24
